Primal Performance Series 125kg Pin-Select - Lat Pulldown

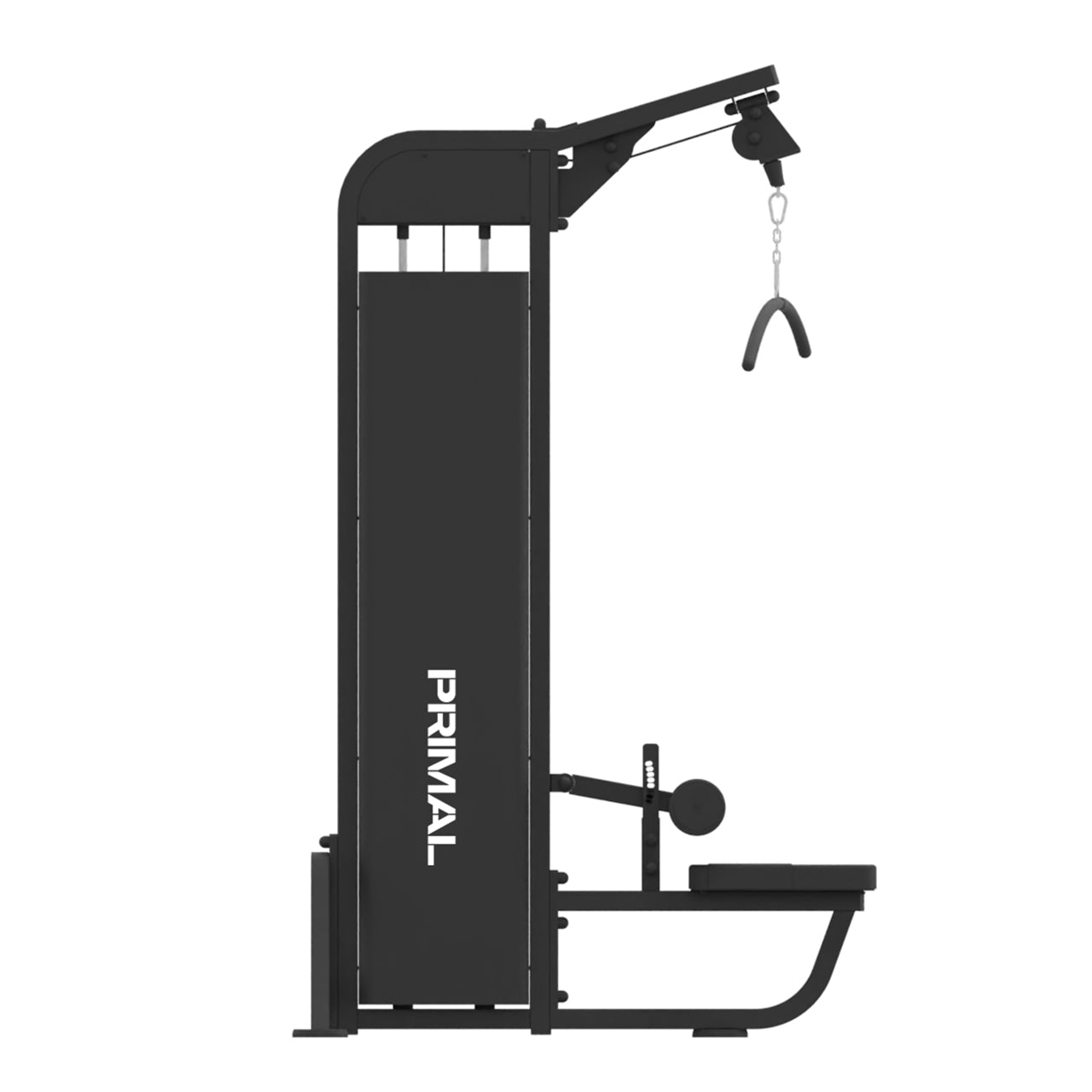

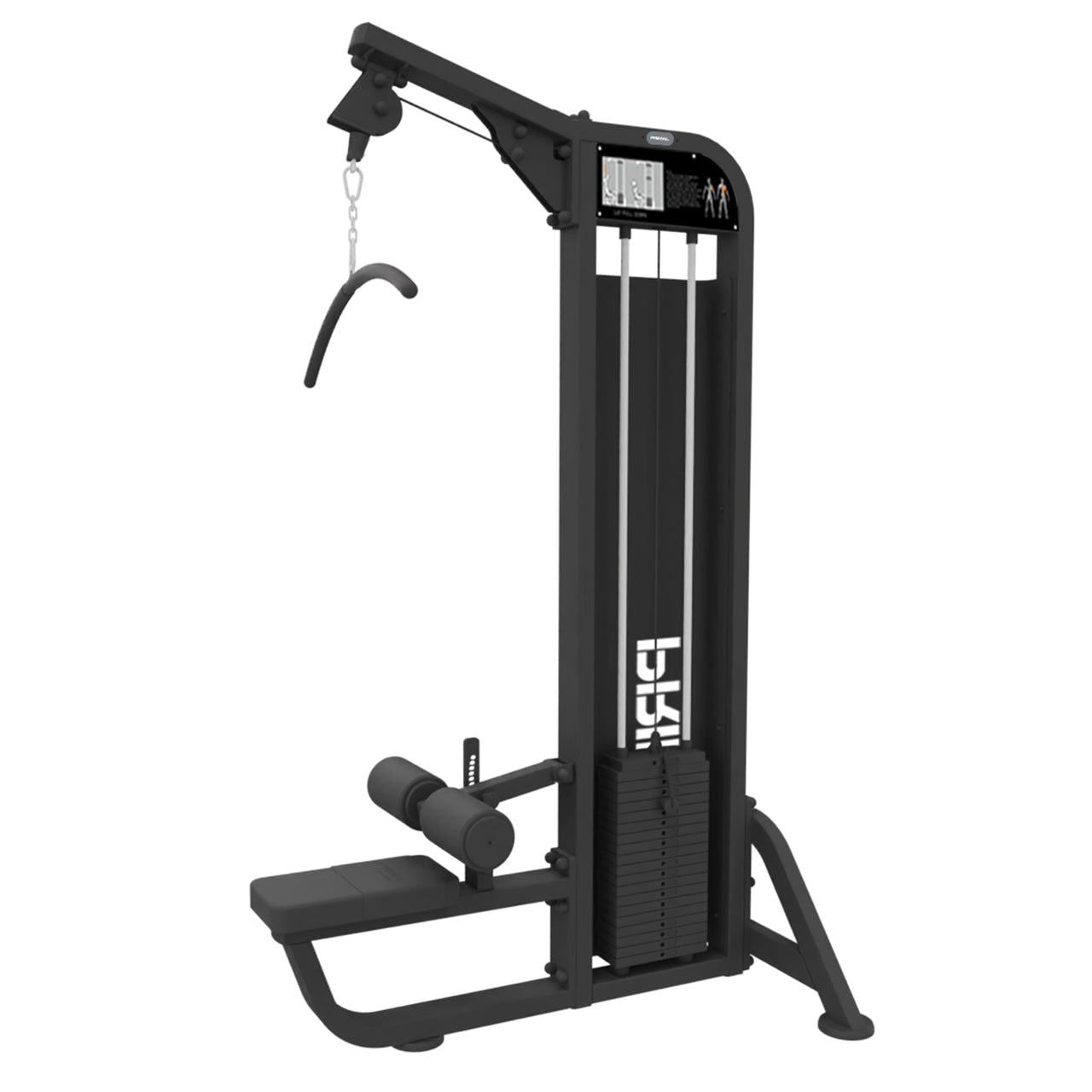

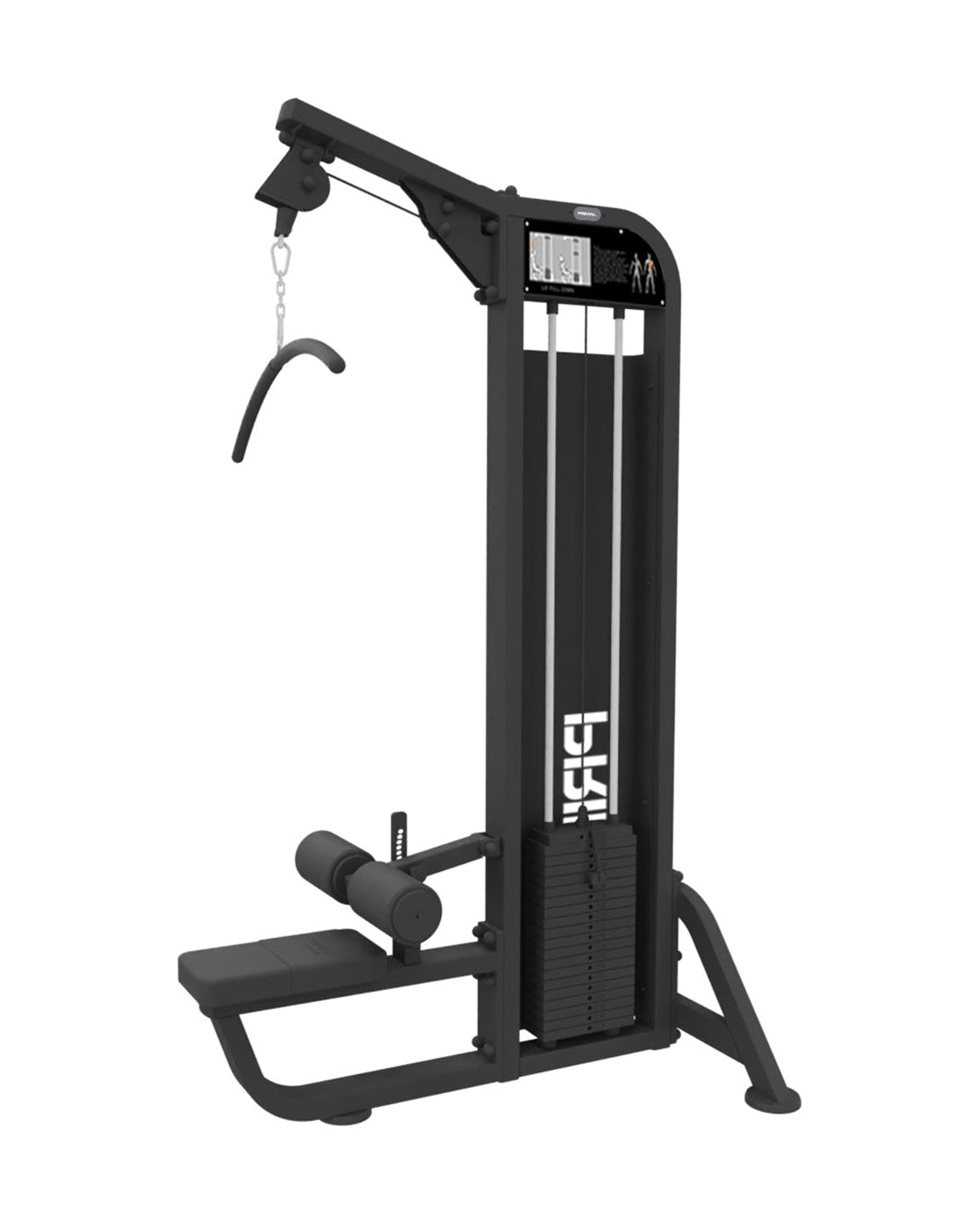

The Primal Performance Series Lat Pulldown is a seated, pin loaded pulldown with a 125 kg weight stack, a swivel mounted high pulley and a taller frame for a bigger stretch at the top. It stands 2330 mm tall on a 1000 × 1450 mm footprint and weighs 256 kg.
The swivel pulley follows the cable as users change grips or pull one arm at a time, and the extra height means taller members get a full overhead reach before each rep.
Who it is for
- Commercial gyms that need a heavy use back machine
- PT studios teaching the vertical pull before chin ups
- S&C facilities building back strength for swimmers, climbers and throwers
- Community and hotel gyms needing an intuitive back station
Key features
- Swivel mounted high pulley that tracks the cable through different grips and angles
- Taller frame for a greater stretch at the top of the pull
- 125 kg pin select stack with gas sprung adjustments
- 3 mm laser cut steel frame, electro powder coated in matte black
- Urethane injection moulded pads with double stitched, customisable covers
- 1000 kg rated cables and laser cut frame shrouds
Muscles worked and training uses
The pulldown trains the vertical pull, drawing the elbows down toward the ribs to work the lats through a long range.
- Primary: latissimus dorsi
- Secondary: biceps, rear deltoids, rhomboids and lower trapezius
- Building toward bodyweight chin ups and pull ups
- Grip variations (wide, close, neutral, single arm) for back width
- Upper body circuits with fast pin changes
Specifications
| Specification | Details |
|---|---|
| Set-Up Size | 1000 × 1450 × 2330 mm |
| Net Weight | 256 kg |
| Gross Weight (packed) | 291 kg |
| Weight Stack | 125 kg pin select |
| Packing Size | 2280 × 740 × 490 mm |
| Warranty | Full commercial use: 5 years frames, 3 years parts, 1 year on pads, cables, pulleys/wearables. 1 year labour. |
| Brand | Primal Strength, Performance Series |
Frequently asked questions
How much floor space does the Lat Pulldown need?
It is 1000 × 1450 mm and 2330 mm high. Leave about 600 mm around it for access, which gives a zone of roughly 2.2 × 2.7 m.
What ceiling height do I need?
The frame is 2330 mm tall, so a 2.4 m ceiling leaves very little room. We suggest at least 2.6 m, and check for lights, fans or beams directly above.
What is the weight stack?
It carries a 125 kg pin select stack.
What warranty does it have?
Primal Strength states a full commercial use warranty of 5 years on the frame, 3 years on parts, and 1 year on pads, cables, pulleys and wearables, plus 1 year labour.
Do you deliver and install it?
Yes. We ship Australia-wide from our Melbourne warehouse, and most metro deliveries arrive 1 to 7 business days after dispatch. Packed, this machine weighs 291 kg, so some regional addresses need a freight quote. It ships in a long 2280 × 740 × 490 mm crate, so check access through doors and corners. Use the Ask about this machine form on this page and we will quote delivery and installation for your site.
Is this the updated version?
Yes. This version adds the swivel mounted high pulley and extra frame height compared with earlier Primal pulldowns.
Pair it with a seated row so members cover both vertical and horizontal pulling.
Shipping & Returns
Compound Fitness Equipment offers Australia-wide shipping on all orders. Shipping times are estimated between 1-7 business days from dispatch depending on your location and the items you have ordered:
1 - 5 days (Melbourne Metro, Sydney Metro)
3 – 7 days (Brisbane Metro, VIC, NSW, SA)
3 - 7 days (QLD & TAS)
5 - 7 days (WA & NT)
Pre-ordered items are subject to shipment arrival. All pre-orders will be given an accurate ETA post purchase. For enquiries regarding shipping times, contact us and we will get in touch with you. Due to the nature of our heavy products, some locations will require a shipping quote (you will be prompted at checkout if you are outside of our shipping region).
Money Back Guarantee
Customer satisfaction is very important to us at Compound Fitness Equipment, that’s why we stand by our product and offer a 7 Day Money Back Guarantee. Please ensure you meet the following conditions in order to qualify:
- Contact Compound Fitness Equipment within 7 days of taking your delivery to customerservice@compoundfitness.com.au
- Supply your Order Number, products you wish to return and reason for the enquiry
- The item/s must be unused and returned in their original packaging (including manuals & parts) at your own expense. We do not cover return of freight. All goods will be credited once products arrive back to our Melbourne Warehouse, discretion of Compound Fitness Equipment
- The return of goods must be sent to our Melbourne based warehouse on the customers behalf within 14 days of our refund approval
- Compound Fitness Equipment reserves the right to reject a claim for a refund, based on the enquiry not meeting these needs
- All successful refunds will be credited electronically back to the credit card/bank account associated with the original online purchase
Warranty
We stand by our product and want our customers to be happy with their purchase. If you have any problems with your Compound Fitness equipment, please follow the steps HERE on our Warranty Page and one of our representatives will be in touch with you.
Compound Fitness Equipment warrants that the Product(s) will be free from defects in workmanship and materials for periods relative to our Warranty product table below.
Product information
Step by step assembly for the Primal Performance Series 125kg Pin-Select - Lat Pulldown: parts list, hardware and every build stage (PDF, 10 pages).
DOWNLOAD HERE
